Goff Barrel Blast Models |
|---|
| Model | 1-1/2 Cu Ft | 2 Cu Ft | 2-1/2 Cu Ft | 3 Cu Ft | 6 Cu Ft S | 6 Cu Ft D | 12 Cu Ft S | 12 Cu Ft D | 24 Cu Ft |
| Number of Blast wheels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| HP per Blast Wheel | 5 | 5 | 3 | 7-1/2 | 15 | 15 | 20 | 20 | 2 x 15 |
| Max Abrasive Flow | 160.0 | 160.0 | 70.8 | 190.0 | 328.0 | 328.0 | 435.0 | 435.0 | 237.0 |
| Abrasive Velocity | 177.6 | 177.6 | 177.6 | 237.0 | 237.0 | 237.0 | 237.0 | 237.0 | 237.0 |
| Initial Filling | 175 | 175 | 175 | 300 | 400 | 1200 | 2000 | 2000 | 4000 |
| Workload Capacity | 200 | 250 | 250 | 400 | 800 | 800 | 1600 | 1600 | 3000 |
| Workload Dimensions | 18"x 20" | 24"x22" | 30"x 24" | 31"x24" | 37"x28" | 37"x28" | 38"x42" | 38"x42" | 58"x48" |
| Pitless Design | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Single Lip Separator | Opt | 9" | 12" | 14" | 20" | ||||
| Double Lip Separator | 2x20" | 2x20" | 2x30" | ||||||
| Rotary Screen | Opt | Opt | Opt | Opt | Yes | Yes | Yes | Yes | |
| CFM Required | 500 | 700 | 500 | 800 | 800 | 2000 | 2000 | 2000 | 2500 |
| Total HP (w/o Dust Collector) | 6 | 6 | 4-3/4 | 8-3/4 | 17-1/4 | 19-1/2 | 23-3/4 | 24-1/2 | 45-1/4 |
| Total Amps @ 460 Volts | 11.0 | 11.0 | 7.6 | 14 | 27 | 27 | 34 | 34 | 59 |

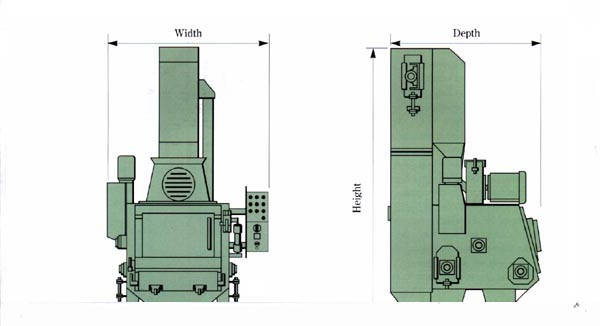

| Dimensions | |||||||||
| Height | 7' | 9'-5" | 8'-1" | 9'-3" | 12'-3" | 11'-8" | 15'-3" | 13'-2" | 17'-10" |
| Width | 4' | 4'-8" | 4'-5" | 5'-3" | 7'-2" | 10'-5" | 8'-8" | 10-8" | 13'-1" |
| Depth | 3'-11" | 4' | 4'-5" | 4'-10" | 5'-11" | 4'-8" | 5'-6" | 5'-8" | 6'-8" |
| Total Weight (lbs) | 1300 | 1500 | 1740 | 2500 | 5600 | 7000 | 9500 | 10,000 | 18,500 |
